AMK Products Front Passenger-Side Firewall A/C Fastener Kit Camaro 1970 69-Piece

Secure the air conditioning components on the engine bay side of the passenger-side firewall in a 1970 Camaro with this 69-piece fastener kit. The application-specific collection provides factory-style hardware for multiple A/C components, replacing missing, incorrect, or worn original fasteners throughout the firewall-mounted system.

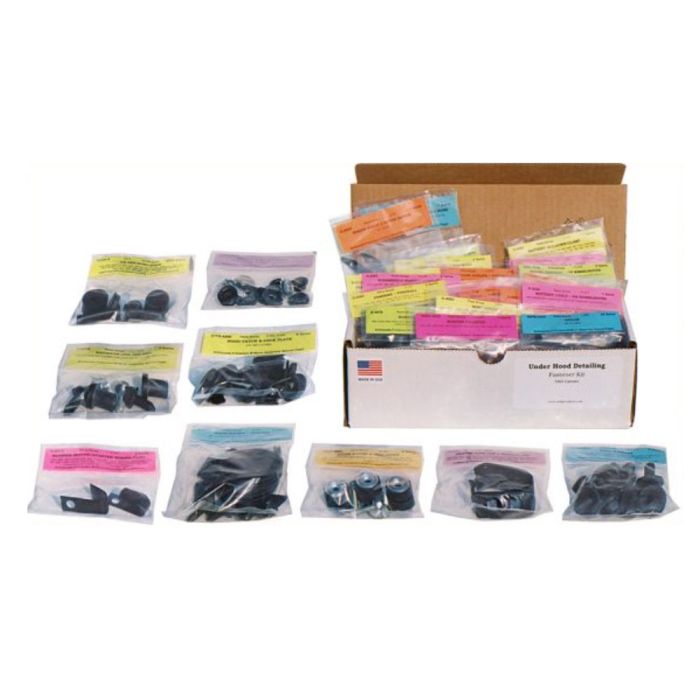

Individual hardware groups are packaged and labeled by application to help identify their intended mounting locations. The kit covers components including the evaporator, blower, condenser, receiver tank, vacuum tank, resistor, relay, hoses, wiring, water shut-off valve, and related A/C mounting points.

Features and Benefits:
- 69-piece kit
- For A/C system mounting and restoration
- Hardware for engine bay side firewall
- Passenger-side hardware
- Individually packaged
- Detailed package for precise placement
- Factory-style hardware kit

Kit Includes:
- A/C ambient switch to evaporator: hex washer AB-type screws (x2pcs)
- A/C blower and evaporator to firewall: hex flat sems, collar stud, nuts, washer's (x16pcs)
- A/C compressor wiring: 5.1" flexible straps (x2pcs)
- A/C condenser: hex split sems, flange nuts (x16pcs)
- A/C evaporator case: hex washer thread-rolling screws (x6pcs)
- A/C ground to firewall: hex washer AB screw, tooth washer (x2pcs)
- A/C heater hose to dash grommet: hex AB flat sems (x2pcs)
- A/C hose to heater hose: 11.25" flexible strap (x1pc)
- A/C hose to right wheelhouse: hex washer AB screws (x2pcs)
- A/C receiver rank to radiator support: hex washer AB screws, spring nuts (x6pcs)
- A/C resistor and relay to evaporator: hex washer AB-type screws (x3pcs)
- A/C vacuum hose attachments: hex AB screws and retainers only (x6pcs)
- A/C vacuum hose clamps: flat wound spring clamps (black) (x2pcs)
- A/C vacuum tank: hex washer AB screws (x2pcs)
- A/C valve, tube brackets to evaporator: hex washer AB and AB-type screws (x2pcs)
- A/C water shut-off valve: 3/16" pop rivets (x2pcs)
- A/C water shut-off valve: hex washer drill screws (x2pcs)
- A/C wiring at evaporator: 5.1" flexible strap (x1pc)

Vehicle Fitment:
- 1970 Camaro
