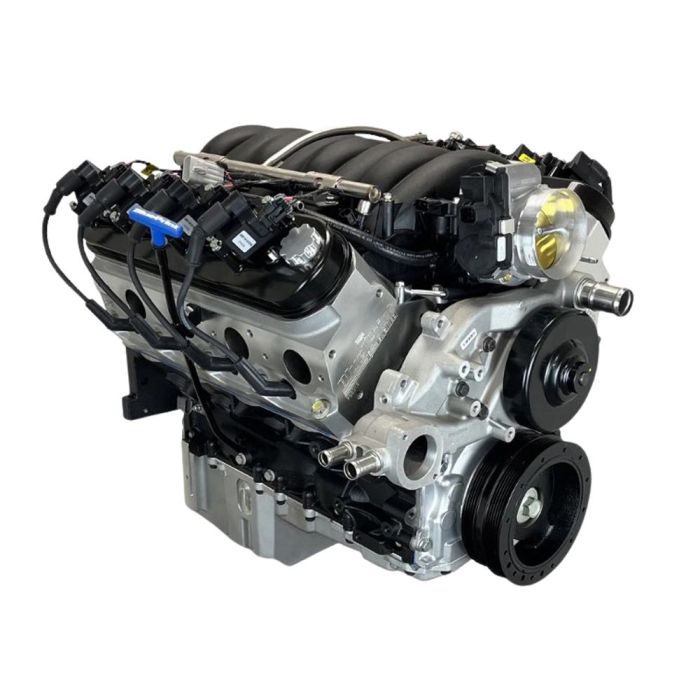

BluePrint Engines GM LS Pro Series 376 Crate Engine Base Dressed 530 HP w/o ECU/ Harness

This crate engine (PSLS37630CTF) unleashes raw LS power with 530 horsepower and 495 ft-lbs of torque! It features a hydraulic roller cam, aluminum LS3 heads, hypereutectic pistons, and a nodular iron crankshaft. It also offers a 10.7:1 compression ratio and comes base dressed.

Features and Benefits:
- High-strength cast iron LSX-style base-dressed crate engine block
- 530 Horsepower / 495 FT. LBS. Torque
- Compression Ratio: 10.7:1
- Features 6-bolt main, 4.0662" bore, and 1-piece rear main seal
- Priority main oiling and improved water jacket design
- Increased deck thickness and strength webbing
- Nodular iron crankshaft with hypereutectic pistons and 3.622" rotation stroke
- 6.125" connecting rods with 150,000 PSI bolts
- Internally balanced at the front and rear
- Hydraulic roller cam design
- Utilizes OEM LS3 front and rear covers
- Backed by BluePrint Engines' 30-month/50,000-mile warranty

Cylinder Head Specifications:
- 69cc Chambers
- 2.165" Intake / 1.590" Exhaust Valves
- 259cc Intake / 102cc Exhaust Runners

Camshaft Specifications:
- 0.612" Intake / 0.585" Exhaust Lift
- 225 Intake / 238 Exhaust Duration
- @ 0.050-113 degrees Lobe Separation

Base Dressed Includes:
- LS Swap Oil Pan - windage tray - pickup screen
- Fuel Injectors and Rail
- DBW Throttle Body
- Water Pump
- GM Plastic Intake Manifold
- Spark Plugs and Wires
- Harmonic Balancer
- Coil Packs

Additional Notes:
- Engine is not shipped with Engine controller kit. Must purchase separately for your application. Controller kit can be found by part number BPPLS530.
- BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the above ECU / tuning.
- Does NOT include engine controller. This is a dressed long block only. No Harness/ECU provided. This is for customers wishing to use their own engine controller package.
