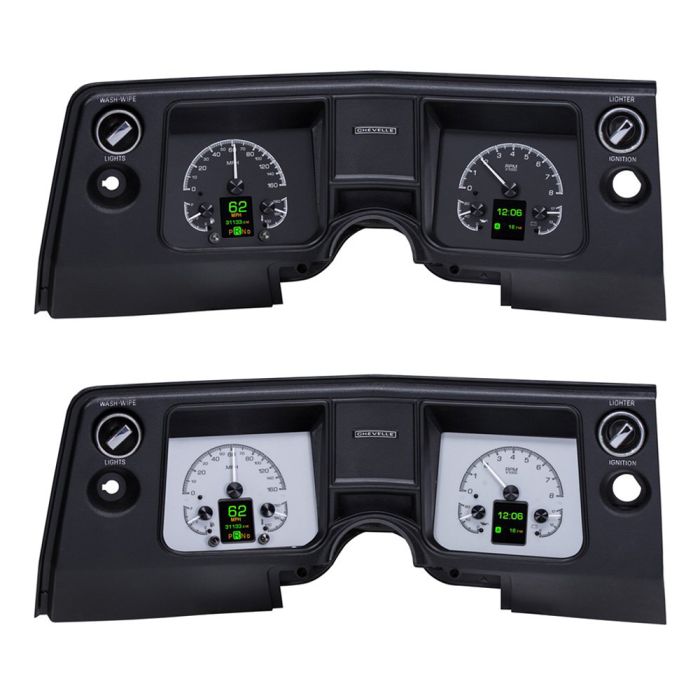

Dakota Digital HDX Gauge System w/ HDX Instruments Chevelle/ El Camino 68

This Dakota Digital HDX gauge system fits the original instrument housing in your 1968 Chevelle or El Camino. It adds expanded vehicle monitoring through analog-style gauges and a full-color digital display.

Features and Benefits:
- Six analog gauge readouts
- Full-color TFT message center and digital clock
- Black nickel needle hubs
- 30+ customizable RGB lighting options with 12 preset themes
- Independent day and night brightness settings
- Capacitive touch controls for setup and calibration
- Bluetooth mobile configuration
- Integrated status indicators
- Two auxiliary indicators with user definable labels
- Programmable red warning lights
- Full LED backlighting and dead faced indicator windows
- Central control interface box

The HDX system combines six analog gauges with a central TFT message center to display vital vehicle information. Adjustable lighting allows independent control of needle, sweep, and digital display colors during day and night driving. A centralized control box manages sensor inputs and system signals to support clean wiring and reliable gauge operation.

Please Note: Optional accessories such as the GSS 3000 Gear Position Sensor or DIM 1 Dimmer Module may be required depending on your configuration. Always verify vehicle fitment and accessory requirements before ordering.

Vehicle Fitment:
- 1968 Chevelle
- 1968 El Camino
- 1968 Chevy Malibu

Specifications:
Digital Message Centers
- Million mile odometer
- Dual A/B trip meters
- Estimated range / miles to empty
- 0-60 MPH timer
- 1/8 mile & 1/4 mile times and trap speeds
- High speed and high RPM recall

Included Sensors & Hardware
- 1/8" NPT ground isolated water temperature sensor (10 ft harness)
- 1/8" NPT solid state oil pressure sensor (10 ft harness)
- GM style cable driven speed sensor / generator (10 ft harness)
- Bushings: 1/8", 1/4", 3/8", 1/2" NPT + 12mm & 16mm x 1.5 thread adapters
