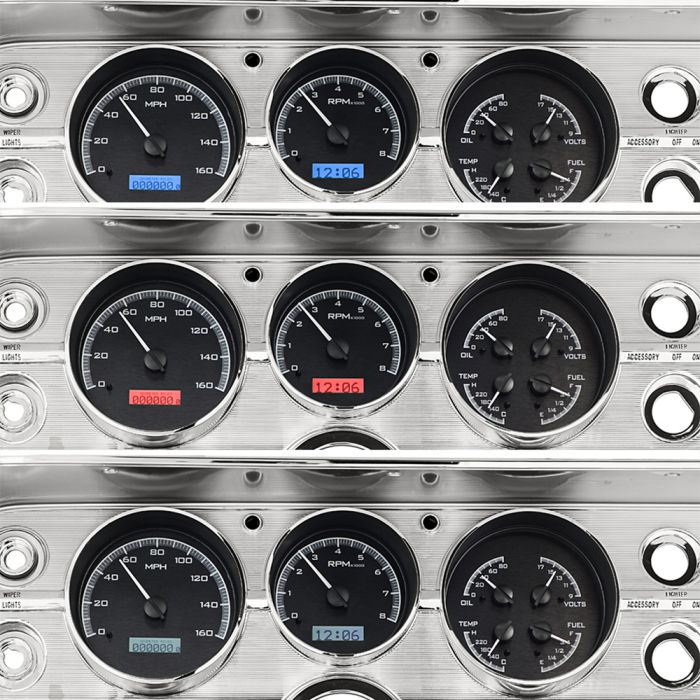

Dakota Digital VHX Gauge System Chevelle 64-65 Black Alloy Style Face

Modernize the instrumentation in your 1964-1965 Chevelle with the Dakota Digital VHX Gauge System featuring a Black Alloy Style Face. Designed to fit a factory or reproduction instrument bezel, this complete system combines analog-style stepper motor gauges with dual LCD message centers to deliver modern accuracy, outstanding visibility, and extensive vehicle information while maintaining a classic appearance.

Features and Benefits:
- Factory-style direct-fit design
- Black Alloy style gauge face
- Fully lit needles with LED backlit faces
- Dual LCD message centers

Fully illuminated needles, LED backlit gauge faces, and auto-contrasting LCD displays provide excellent readability in any lighting condition. Precision stepper motors and solid-state sensors deliver smooth, accurate gauge operation, while the programmable message centers display trip information, performance data, and additional digital gauges.

Available with a choice of blue, red, or white LCD display colors, this system is an ideal upgrade for restorations and high-performance builds alike.

Specifications:

Analog Gauges
- Speedometer: 0-160 MPH (0-255 km/h optional)
- Tachometer: 0-8,000 RPM
- Oil pressure: 0-80 psi
- Water temperature: 100-260°F (40-120°C optional)
- Fuel level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC

Lighting
- LED backlit analog gauges
- Fully illuminated needles
- Auto-contrast LCD displays
- High-visibility daytime operation

Digital Message Centers
- Odometer, dual trip meter, clock
- 0-60 MPH timer
- 1/4 mile timer
- 1/4 mile trap speed
- High speed recall
- High RPM recall

Additional Digital Gauges
- Digital speedometer and tachometer
- Oil pressure, water temperature
- Voltmeter
- Fuel level percentage

Built-In Indicators
- Left/right turn signals
- High beam
- Check engine
- Parking brake
- Cruise control
- Gear position (Optional GSS-3000 Required)
- 4x4 (when applicable
- Wait to start (when applicable)

Included Sensors
- Water temperature sender
- Oil pressure sender
- Cable-driven speed sensor/generator
- Assorted thread bushings

Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration: Pushbutton programmable speedometer; fuel level; cylinder count

Vehicle Fitment:
- 1964-1965 Chevelle

Please Note:
- Select display color from the product options.
- Installs into a factory or reproduction instrument bezel (sold separately).
- Optional GSS-3000 sender is required for gear position display.
- Not all factory indicator functions are replaced. Unused indicators may be repurposed.
