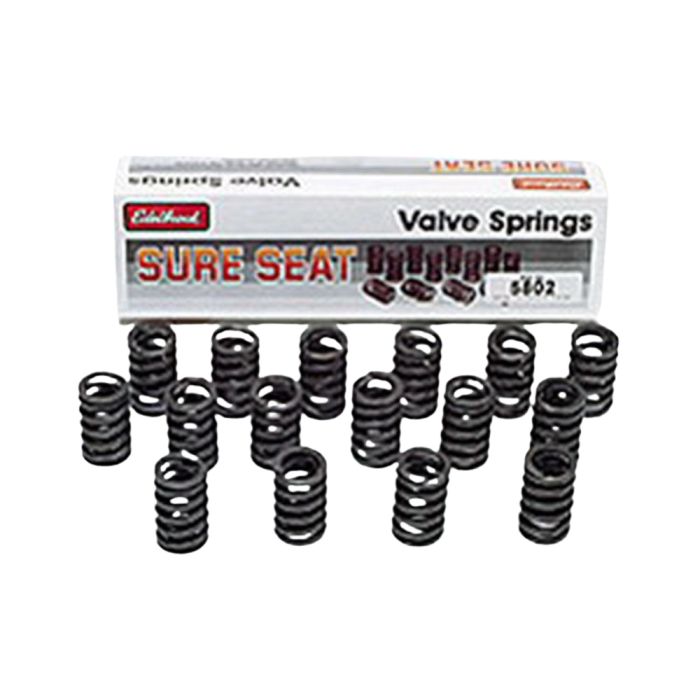

Edelbrock Sure Seat Valve Spring Set Victor Jr. Mechanical Roller

Give your high-performance setup valve springs that can maintain stable pressure at elevated RPM levels. These Edelbrock Sure Seat valve springs fit Victor Jr. cylinder heads and mechanical roller camshafts.

Features and Benefits:
- Designed for mechanical roller camshaft applications
- Dual-coil construction improves valvetrain stability
- Alloy steel material for long-term durability
- Maintains consistent spring pressure at high RPM
- Compatible with Edelbrock Victor Jr. cylinder heads
- Includes complete set of 16 valve springs

These springs feature a dual-coil alloy steel design for consistent installed and open pressures under aggressive camshaft profiles. They can match the demands of Victor Jr. cylinder heads and compatible aftermarket performance combinations. The complete kit includes 16 valve springs for full cylinder head installation.

Please Note:
- Designed for mechanical (solid) roller camshafts only.
- Always check installed height, coil bind clearance, retainer/seal clearance, and cam
manufacturer requirements.

Vehicle Fitment:
- Victor Jr. cylinder heads installed on compatible SBC and SBF applications

Specifications:
- Coil Bind Height: 1.170"
- Inside Diameter: 0.731"
- Outside Diameter: 1.540"
- Installed Height: 1.900"
- Closed Height: 1.900"
- Installed Pressure: 210 lbs
- Closed Pressure: 210 lbs
- Open Height: 0.600"
- Open Pressure: 490 lbs
- Material: Steel
- Spring Type: Dual Coil
- Camshaft Type: Mechanical Roller (Solid Roller)
