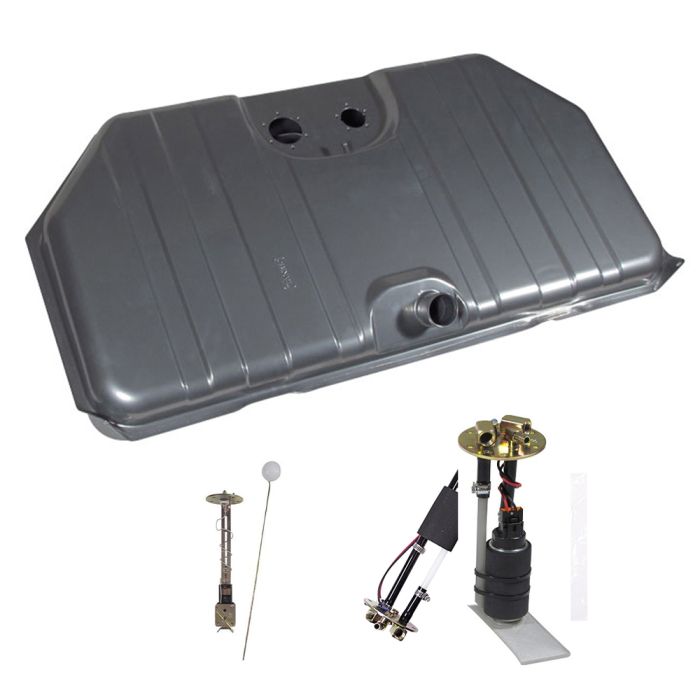

Notched Corner 190 LPH EFI Fuel Tank Kit Camaro 67-68

Upgrade your 1967-1968 Camaro with this complete EFI fuel tank kit featuring a notched corner tank, 190 LPH in-tank fuel pump, and 0-90 ohm sending unit. Designed for EFI conversions and high-performance builds, the notched tank creates additional clearance for wide rear tires and larger exhaust systems while maintaining fuel capacity. The included fuel pump delivers reliable fuel supply for street and performance applications, making this kit an excellent solution for Pro-Touring, autocross, and restomod Camaros.

Features and Benefits:
- Complete EFI fuel system upgrade kit
- Includes fuel tank, fuel pump, and sending unit
- Tank dimensions: 39-3/8" x 20-7/8" x 8-3/4"
- Notched corner design creates additional tire and exhaust clearance
- Narrowed 27" front section accommodates up to 345mm-wide tires
- Maintains 18-gallon fuel capacity with 1" deeper tank design
- EFI-ready configuration for modern fuel injection systems
- Suitable for Pro-Touring, autocross, and street performance applications
- Supports stock applications requiring additional clearance

Fuel Pump Module Features and Benefits:
- 190 LPH high-performance in-tank fuel pump
- Supports up to approximately 450 horsepower
- Operating pressure range from 0-100 PSI
- Heavy-duty 10-gauge mounting plate resists warping
- Yellow zinc-plated finish helps resist corrosion
- Internal wiring harness included
- 1/4" NPT supply and return ports
- Designed for use with internal reservoir trays to reduce fuel starvation

Fuel Sending Unit Features and Benefits:
- 0-90 ohm output range
- Compatible with 1965-up GM fuel gauges
- Adjustable design fits tank depths from 6"-24"
- 5-bolt mounting pattern
- Ceramic rheostat provides accurate fuel level readings

Kit Includes:
- Notched Corner EFI Fuel Tank
- 190 LPH In-Tank Fuel Pump Module
- 0-90 ohm Fuel Sending Unit
- Internal Wiring Harness
- Filter Sock
- Installation Hardware

Vehicle Fitment:
- 1967-1968 Chevy Camaro
- 1969 Pontiac Firebird

Please Note:
- NOT compatible with narrowed leaf spring kits.
- Designed for EFI systems and tanks with internal reservoir trays.
- Verify clearance and fuel system compatibility before ordering.
