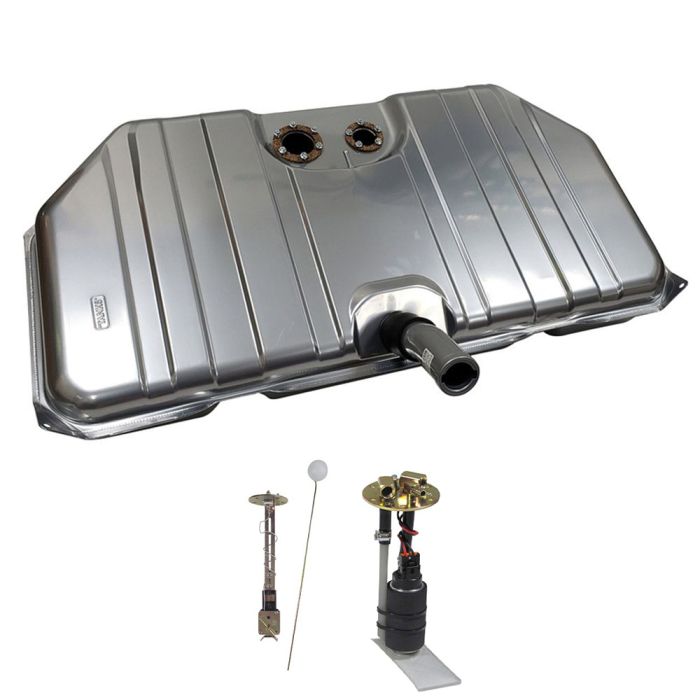

Silver Powder-Coated Notched Corner 255 LPH EFI Fuel Tank Kit Camaro 70-73

Increase the fuel delivery of your EFI-upgraded 1970-1973 Camaro with this notched corner fuel tank kit! It fits mini-tub applications or performance builds with wider tires and bulky exhaust systems. The 20.5-gallon tank is baffled internally to prevent fuel from sloshing around which can cause starvation. It also comes with a filler neck, an in-tank fuel pump, and a fuel sending unit.

Features and Benefits:
- Complete EFI fuel system kit (tank, pump, and sender)
- Notched corner design for improved tire and exhaust clearance
- Corners recessed 6" inward and 6" rearward
- 20.5-gallon EFI-ready fuel tank
- Internal baffling with dual-tube reservoir tray
- Prevents fuel starvation during aggressive driving
- Tank dimensions: 39-3/8" x 20-7/8" x 8-3/4"
- Includes 2-piece filler neck and longer mounting straps
- Corrosion-resistant galvanized steel with silver powder-coated finish

Fuel Pump Module Features and Benefits:
- 255 LPH high-performance in-tank fuel pump
- Supports up to approximately 630 horsepower
- Operating pressure range of 0-100 PSI
- Heavy-duty mounting plate resists warping
- Corrosion-resistant plated finish
- Includes in-tank wiring harness
- 1/4" NPT supply and return ports with barbed vent

Fuel Sending Unit Features and Benefits:
- 0-90 ohm range (Empty: 0 / Full: 90)
- Compatible with 1965+ GM fuel gauges
- Adjustable for 6"-24" tank depth
- 5-bolt mounting design

Kit Includes:
- Notched Corner EFI Fuel Tank
- 255 LPH In-Tank Fuel Pump Module
- 0-90 ohm Fuel Sending Unit
- Internal Wiring Harness
- Pump Components

Vehicle Fitment:
- 1970-1973 Camaro
- 1970-1973 Firebird

Please Note:
- Verify clearance and fuel system compatibility before installation.
