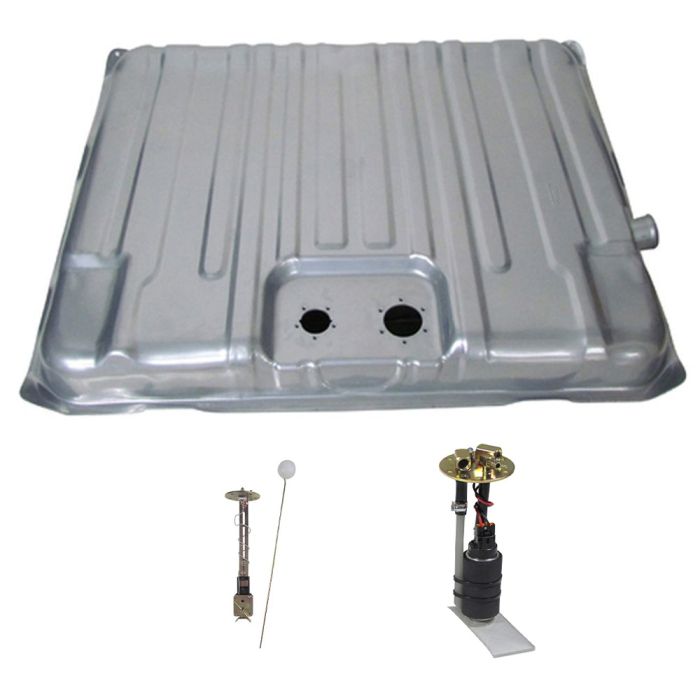

Silver Steel 255 LPH EFI Fuel Tank Kit Chevelle Station Wagon/ El Camino 64-67 Powder-Coated

This kit offers a 24-gallon fuel tank that's ready for installation on your EFI converted Chevelle or El Camino! The tank is 1" deeper at the front than the stock tank which helps to improve fuel delivery. It's also baffled internally to prevent excessive sloshing while and has a reservoir tray that helps to avoid fuel starvation as you hit every corner. This kit requires minimal modifications for installation.

Features and Benefits:
- Complete EFI fuel system kit (tank, pump, and sender)
- 24-gallon EFI-ready fuel tank
- Tank dimensions: 37-1/4" x 30" x 7-3/4"
- Internal baffling with 4.8L dual-tube reservoir tray
- Prevents fuel starvation during aggressive driving
- 1" deeper than stock for improved fuel delivery
- Recessed mounting for pump and sending unit
- Minimal modification required for installation
- Galvanized steel construction with silver powder-coated finish
- Includes 2-piece filler neck with 2" ID hose connection

Fuel Pump Module Features and Benefits:
- 255 LPH high-performance in-tank fuel pump
- Supports up to approximately 630 horsepower
- Operating pressure range of 0–100 PSI
- Heavy-duty mounting plate resists warping
- Corrosion-resistant plated finish
- Includes in-tank wiring harness
- 1/4" NPT supply and return ports with barbed vent

Fuel Sending Unit Features and Benefits:
- 0-90 ohm range (Empty: 0 / Full: 90)
- Compatible with 1965+ GM fuel gauges
- Adjustable for 6"–24" tank depth
- 5-bolt mounting design

Kit Includes:
- Powder-Coated Steel EFI Fuel Tank
- 255 LPH In-Tank Fuel Pump Module
- 0-90 ohm Fuel Sending Unit
- Internal Wiring Harness
- Pump Components

Vehicle Fitment:
- 1964-1967 Chevy Chevelle Station Wagon
- 1964-1967 Chevy El Camino

Please Note:
- Verify compatibility with your fuel system and gauge before installation.
