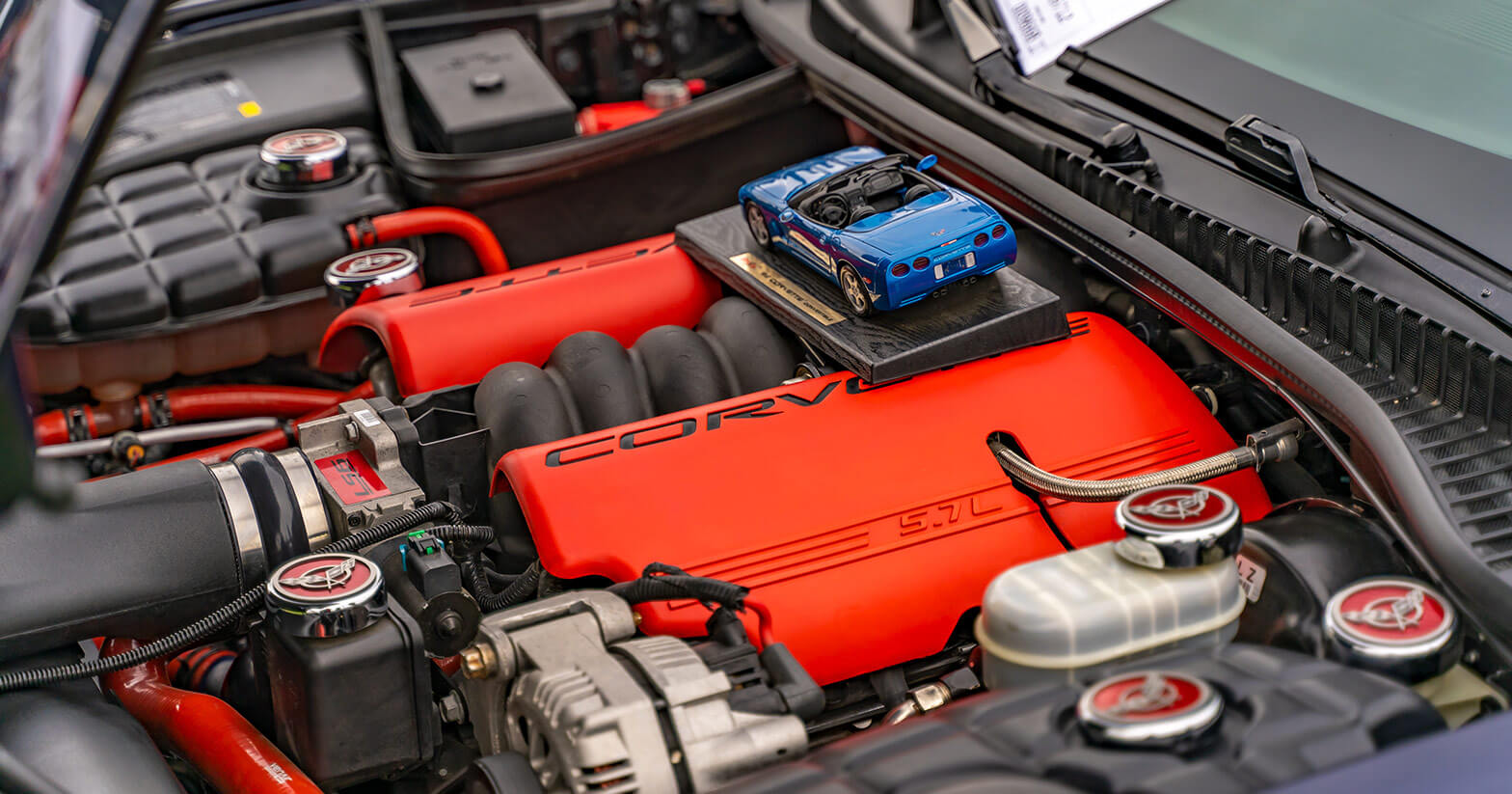

Chevy LS6 Engine Specs
Last Updated April 9, 2026The Chevy LS6 is a high performance version of the LS1 that helped push the LS platform to new levels of power in the early 2000s. Designed with improved airflow and upgraded components, the LS6 delivered more horsepower and better high RPM performance. It remains a desirable option for enthusiasts building classic Camaros, Chevelles, and El Caminos with a focus on naturally aspirated performance.
LS6 Engine Specifications
| Specification | Details |
|---|---|
| Displacement | 5.7L (346 cubic inches) |
| Bore x Stroke | 3.898 in x 3.62 in |
| Block Material | Aluminum |
| Production Years | 2001 to 2005 |
| Factory Horsepower | 385 to 405 hp |
| Factory Torque | 385 to 400 lb ft |
| Compression Ratio | 10.5:1 |
| Fuel System | Sequential fuel injection |
| Cylinder Heads | High flowing cathedral port heads |
What Makes the LS6 Unique?

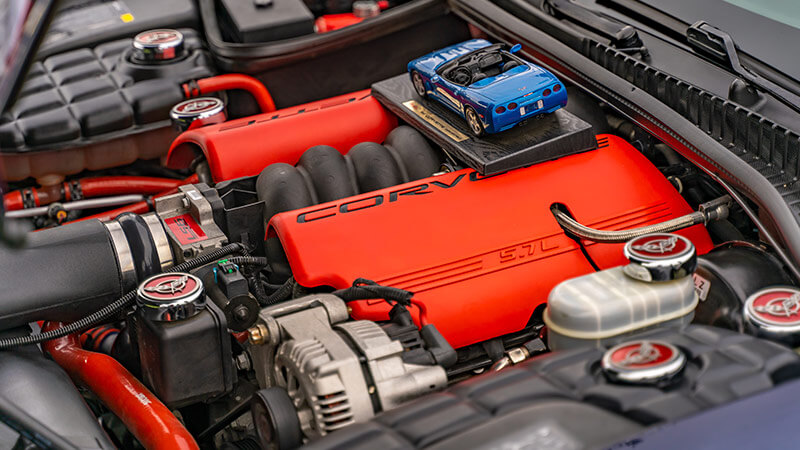

The LS6 was engineered as a performance upgrade over the LS1, with a focus on improving airflow and high RPM capability. It features revised cylinder heads, a more aggressive camshaft, and an improved intake manifold, all of which contribute to its higher power output.
One of the key differences is its enhanced breathing capability. The LS6 benefits from better airflow through both the heads and intake, allowing it to produce more horsepower without increasing displacement. It also includes internal refinements that improve durability under higher performance conditions.
While it shares many core components with the LS1, the LS6 represents a more performance oriented version of the same basic platform.
Factory Applications
The LS6 was used in a limited number of high performance GM vehicles, making it less common than other LS engines.

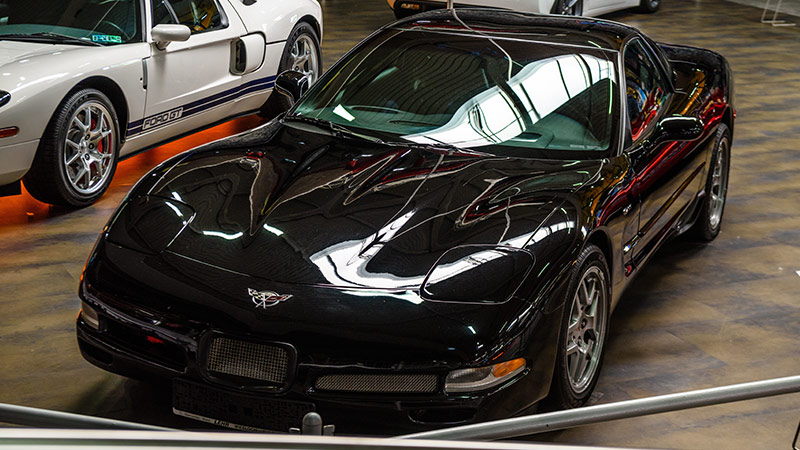

- 2001 to 2004 Corvette Z06 (C5)
- 2004 to 2005 Cadillac CTS V
LS6 Performance and Upgrade Potential
The LS6 offers strong performance in stock form, with up to 405 horsepower from the factory. Its improved airflow and aggressive tuning allow it to perform better at higher RPM compared to the LS1.
Like other LS engines, the LS6 responds well to upgrades such as camshaft changes, headers, intake improvements, and tuning. These modifications can push it well beyond its factory output while maintaining good drivability.
While it does not have the displacement advantage of engines like the LS2 or LS3, its efficient design makes it a strong performer for naturally aspirated builds.
Is the LS6 a Good Swap Candidate?
The LS6 is a solid swap option for enthusiasts looking for improved performance over an LS1 without moving to a larger displacement engine. However, its limited availability can make it harder to find compared to more common LS engines.
Best Uses for an LS6 Swap

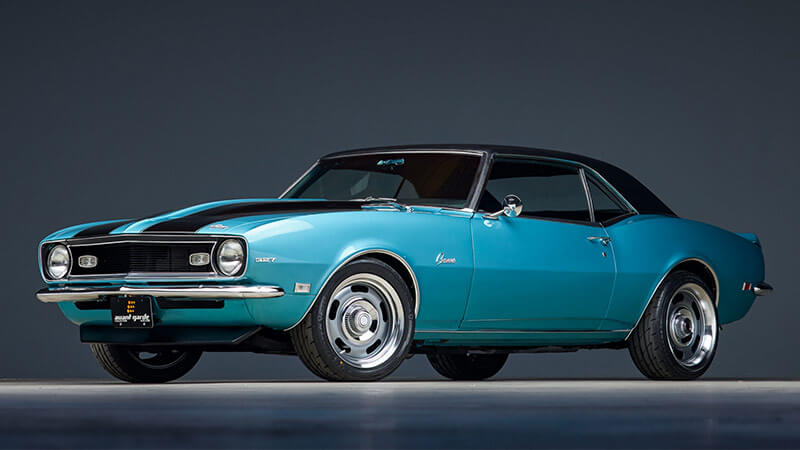

The LS6 is well suited for lightweight classic builds, road course oriented cars, and naturally aspirated performance setups. It works especially well in Camaros and other classic Chevys where high RPM performance and responsiveness are important.
When to Choose a Different LS Engine
If cost or availability is a concern, the LS1 or LS2 may be easier to source. For builds focused on maximum horsepower, engines like the LS3 or LS7 offer more potential due to increased displacement and airflow.
Should You Build an LS6?
The LS6 is a refined and performance focused version of the early LS platform. It offers strong power, excellent airflow, and a more aggressive character than the LS1, making it appealing for enthusiasts who want a naturally aspirated performance build.
For classic Chevy owners upgrading a Camaro, Chevelle, or El Camino, the LS6 provides a unique combination of performance and exclusivity, especially for builds that value high RPM capability and driver engagement.
