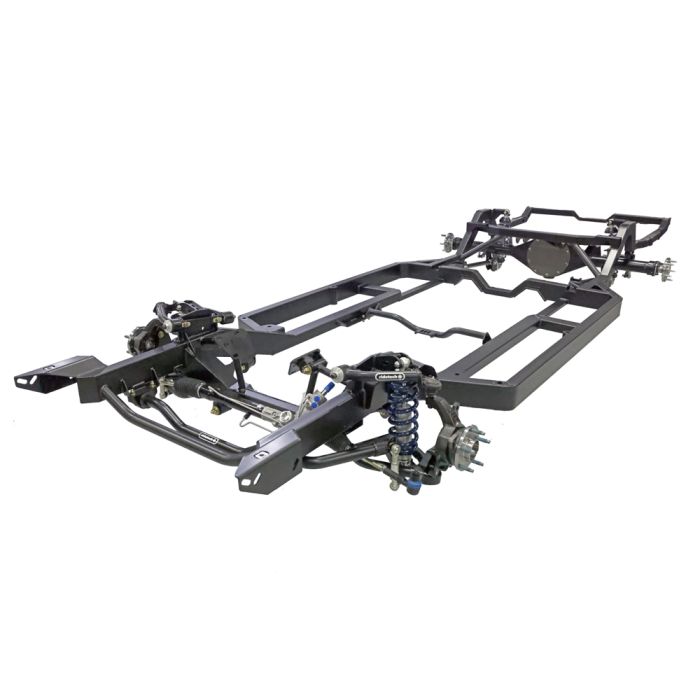

Ridetech Momentum Chassis Kit Chevy Chevelle 68-72

Ridetech's Momentum Series chassis represents a ground-up performance foundation for the 1968-1972 Chevelle, delivering modern suspension geometry with optimized pickup points. It also improves camber gain, caster, and roll center for sharper handling and greater driver confidence. It maximizes wheel and tire clearance, allowing fitment of wide 18" wheel and tire combinations without sacrificing turning radius or comfort. Rack-and-pinion steering, modular suspension options for coil-overs or ShockWave air systems, and Fox Factory shocks give enthusiasts the flexibility to tune for street cruising, autocross, or track days. With support for a wide range of drivetrains including small- and big-block Chevy, LS, and LT engines, plus compatibility with popular manual and automatic transmissions, the Momentum chassis is a versatile and future-proof platform.

Features and Benefits:
- True performance geometry with reengineered suspension pickup points
- Ride height adjustable approximately 2" lower than stock
- Improves tire clearance for wider wheel and tire setups
- Modular suspension compatibility with Ridetech coil-overs or ShockWave air suspension
- Rack-and-pinion steering upgrade offers precise feedback
- Robust Ford 9" rear axle housing in standard or narrowed widths
- Your choice of pin or hub spindle brake configuration
- Engine and transmission flexibility for modern or classic powertrains
- Tubular control arms, billet sway bar mounts, and Delrin bushings for strength and longevity
- No cutting or floor pan modifications required

Kit Includes:
- Complete Replacement Chassis System
- Tubular Upper and Lower Control Arms w/ Delrin Bushings
- Ball Joints and Billet Sway Bar Mounts
- Brake Spindles
- Rear 4-Link System
- Ford 9" Rear Axle Housing
- 1.5" Front Sway Bar w/ Billet Aluminum Mounts
- Polyurethane Body Bushings
- Installation Hardware

Please Note:
- Third member, steering rack, coil-overs/air ride, and rear sway bar are NOT included; they are all sold separately.
- Uses 1999-2004 Mustang rack-and-pinion (sold separately).

Front Suspension Geometry:
- Roll Center Height: 2.16"
- Camber Gain: 1.07 degrees per inch compression
- Caster: 7 degrees
- Anti-Dive: 20%
- Steering Angle: 26–29 degrees

Rear Suspension Geometry:
- Roll Center Height: 13"
- Anti-Squat % (adjustable via lower bar)
- - Upper Bars Lower Position: 105-175%
- - Upper Bars Upper Position: 55-90%

Wheel/Tire Fitment:
- Front: 18x9" wheels, 6" backspacing, 275/40R18 tire tested
- Rear: 18x11" wheels, 6.5" backspacing, up to 295/40R18 tires (335mm possible w/ mini-tubs)

Drivetrain Compatibility:
- Engines: Small-Block Chevy, Big-Block Chevy, LS, Gen V LT
- Transmissions: Tremec T-56/TKX, Muncie, Saginaw, TH350/400/700R4, 4L60/80E family
- Rear Axle: Ford 9” housing (standard/narrowed), accepts any 9" third member

Brakes:
- Pin Spindles: Stock-style or aftermarket Wilwood/Baer kits
- Hub Spindles: C5/C6/C7 Corvette hubs with factory or aftermarket C5/C6 brake packages
