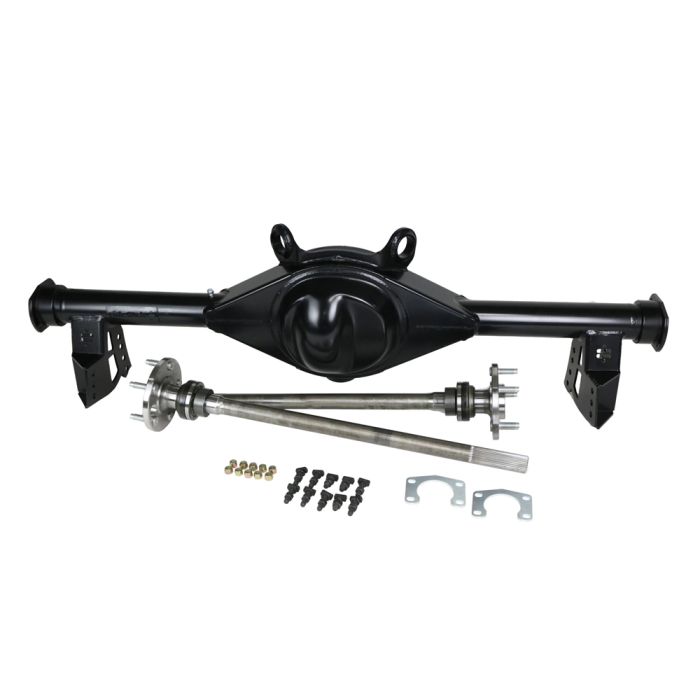

Ridetech Ford 9" Housing and Axle Package Chevelle/ El Camino 64-72

This Ridetech Ford 9" housing and axle package is designed for 1964-1972 Chevy Chevelles and El Caminos using a bolt-on 4-link system. Built as a durable foundation for performance applications, the housing features a reinforced webbed center section with internal gussets and heavy-duty 3" diameter tubes. The design incorporates a 1" pinion offset and billet steel flanges, providing proper alignment and strength under load. Included 31-spline axles are constructed from heat-treated alloy material and come equipped with pressed-on bearings and retaining plates. Finished in satin black powder coat, this assembly is built for durability while maintaining a clean appearance.

Features and Benefits:
- Designed for use with Ridetech bolt-on 4-link systems
- Compatible with Ridetech coil-over and ShockWave setups
- Fits Ridetech StrongArms and most stock or aftermarket trailing arms
- Torino housing flanges support a wide range of brake systems
- Webbed center section with internal gusseting for added strength
- 1/4" wall 3" diameter axle tubes for durability
- 1" pinion offset with centered housing design
- Adjustable anti-squat range from 130% to 200%
- 31-spline heat-treated 1541H alloy axles included
- Timken SET20 bearings pressed onto axles
- Bearing retaining plates and axle seals included
- Axles feature access holes for easier service
- Includes Grade 8 hardware including studs, t-bolts, nuts, and washers
- Drain plug and jack pad included for convenience
- Satin black powder coat finish for corrosion resistance
- Includes Ridetech branding and logo plate
- Multiple flange-to-flange width options

Please Note: Third members and R-Joint Bushing Kit are optional but recommended for a complete installation.

Specifications:
- P/N 11239682: 64-67 Stock Width; Axle Flange Width: 59.375"; Housing Flange Width: 54.375"; Axle Offset: 2.5"; Pinion Offset 1"; Driver Axle: 27.875"; Passenger Axle: 30.313"
- P/N 11249682: 68-72 Stock Width; Axle Flange Width: 60.250"; Housing Flange Width: 55.250"; Axle Offset: 2.5"; Pinion Offset 1"; Driver Axle: 28.313"; Passenger Axle: 30.750"
- P/N 11249683: 64-67 Narrowed; Axle Flange Width: 57.250"; Housing Flange Width: 52.250"; Axle Offset: 2.5"; Pinion Offset 1"; Driver Axle: 26.813"; Passenger Axle: 29.250"

Vehicle Fitment:
- 1964-1972 Chevy Chevelle
- 1964-1972 Chevy El Camino
- 1964-1972 Pontiac GTO
- 1964-1972 Buick Skylark / GSX
- 1964-1972 Oldsmobile Cutlass / 4-4-2
