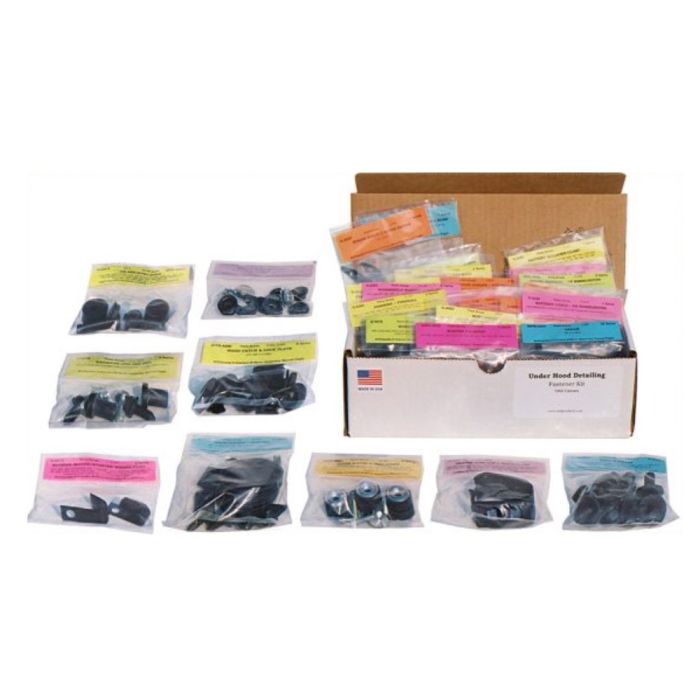

AMK Products Underhood Supplement 63-Piece Kit Chevelle 70-71

Complete the underhood details of your 1970-1971 Chevelle with this AMK Products underhood supplement kit! This complete 63-piece kit eliminates the hassle of sourcing individual hardware sets.

Features and Benefits:
- Complete 63-piece underhood supplement
- Factory-replacement fasteners and hardware
- Separately packaged individual hardware sets for easier organization
- Each package labels the intended placement and required quantity
- Eliminates the need to source numerous individual hardware sets
- Omits duplicate hardware found in master chassis, body, or wiring clip kits

Each hardware group is individually packaged and labeled to simplify identification and placement. If you've already purchased a master chassis, body, or wiring clip kit, this kit adds factory fasteners without duplicates.

Please Note: This kit should not be purchased in addition to an AMK Products Underhood Detailing Kit.

Vehicle Fitment:
- 1970-1971 Chevelle

Kit Includes:
- (1) Battery holddown clamp: Hex conical SEMS
- (4) Headlight, parking light grounds, junction block: Hex washer AB screws, nuts, tooth washer
- (13) Heater box/blower housing to firewall: Hex internal/external SEMS, stamped nuts, - sealer, seal
- (1) Heater hose clip at wheelhouse: Fold-over metal clip
- (1) Heater hose clip to alternator bracket without A/C: Fold-over metal clip
- (1) Low-note horn to hood catch support: Hex pilot-point conical SEMS
- (1) Horn relay: Hex washer AB screw
- (3) Radiator for 307/327/350: Hex washer CA screws
- (6) Radiator fan shroud: Hex flat SEMS, S-clips, spring nuts
- (2) Radio ground clips to hood: Hex washer AB screw, hex AB flat SEMS
- (2) Radio ground straps to firewall: Hex washer AB screws
- (3) Voltage regulator: Hex washer AB screws
- (2) Windshield washer bottle: Hex washer AB screws
- (2) Windshield washer nozzles: #8 hex washer B screws
- (10) Wiper motor (round style): Grommets, 3.25" overall-length strap, screws
- (1) Alternator wiring to heater hose: 7.1" flexible strap
- (2) Blower motor/starter wiring: Rubber-coated J-clips
- (2) Engine wiring near wiper motor: Rubber-coated J-clip, hex washer screw
- (2) Horn wiring: S-clips
- (2) Wiring "gutter" to firewall: Hex AB flat SEMS
- (2) Wiring harness to driver-side wheelhouse: Push-end black plastic straps
