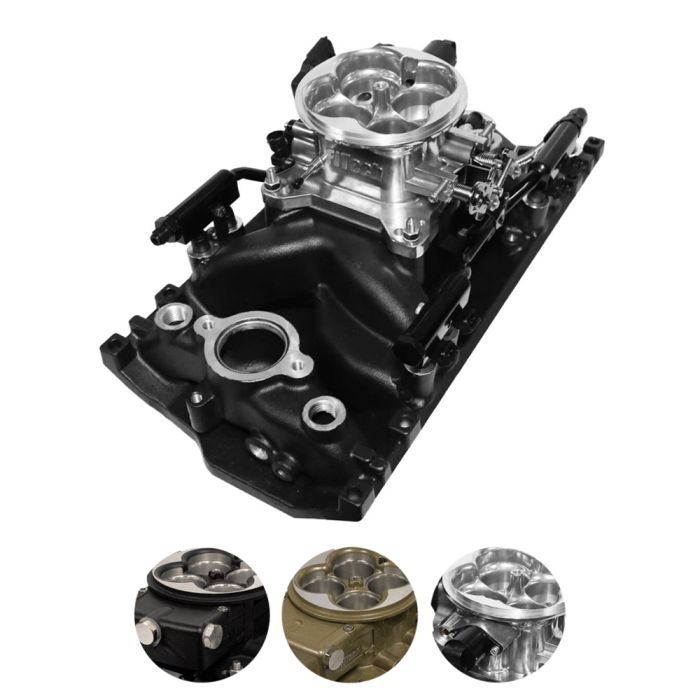

FiTech Ultra Port EFI System SBC Vortec 1000 HP w/ Throttle Body/ 4150 Flange
Highlights
- Supports Up to 1,000 HP
- 1,000 CFM Throttle Body
- Self-Learning ECM
- Multi-Port Fuel Injection
FiTech Ultra Port 1,000 Horsepower EFI System with a Throttle Body and 4150 Flange for Small-Block Chevy Vortec Engines.
Unleash serious power from your small-block Chevy Vortec engine with this EFI system. FiTech's Ultra Port system excels at performance, capable of supporting 1,000 horsepower on gasoline. It's done while ensuring the 1,000 CFM throttle body receives ample airflow via the venturi outlets. It even uses a self-learning and user-tunable ECM, making it highly flexible. As a bonus, the MAP-N metering and TMAP sensor serves as the foundation for precise fuel management.
Features and Benefits:
- Your choice of a brilliant polished, ultra black, classic gold, or classic black throttle body finish
- Multi-port EFI system supports up to 1,000 horsepower on gasoline
- Compatible with forced induction and nitrous applications
- Supports gasoline, alcohol, methanol, and flex fuel
- 1,000 CFM throttle body uses four 44mm venturis
- Standard-deck cast aluminum intake manifold features a black finish
- Self-learning ECM simplifies fuel calibration
- Fully user tunable ECM provides additional calibration control
- Speed density MAP-N fuel metering
- Compatible with timing control
System Includes:
- Cast aluminum intake manifold
- 1,000 CFM cast aluminum throttle body
- 4150 4-barrel square-bore throttle body flange
- 80 lb/hr fuel injectors
- Multi-port fuel rails
- Self-learning ECM
- 3-Bar TMAP sensor
- Oxygen sensor
- MAP sensor
- IAT sensor
- TPS sensor
- IAC
- Wiring harness
- Calibration module
Vehicle Fitment:
- 1964-1972 Chevy Chevelle
- 1964-1972 Chevy El Camino
- 1967-1973 Chevy Camaro
- Designed specifically for models with a small-block Chevy Vortec engine
Please Note: The fuel pump, fuel pressure regulator, EGR, and transmission controller are not included.
California Residents: Proposition 65 Warning
Related Categories: Restomod, EFI Conversion Kits
Only for use on pre-pollution controlled vehicles: This product can be used on vehicles that were manufactured before emissions control regulations were imposed. Pre-pollution vehicles are defined as:
- 1965 and older U.S. manufactured California certified vehicles
- 1967 and older U.S. manufactured federally certified vehicles
Vehicle Fitment
This product will fit the following Camaro years:
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
This product will fit the following Chevelle years:
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
This product will fit the following El Camino years:
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
