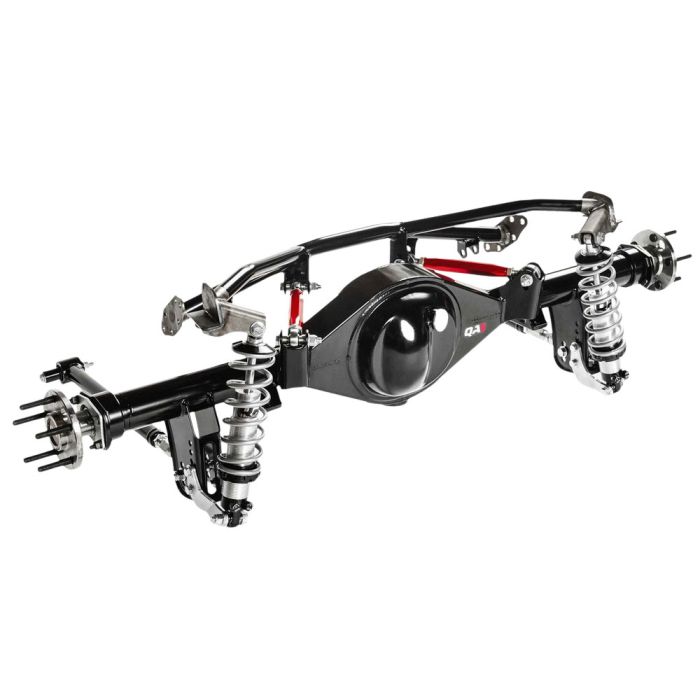

QA1 Rear 4-Link Suspension System Camaro 67-69/ Double Adjustable w/ Narrowed 9" Rear Housing

Transform the rear suspension of your classic F-Body with the QA1 rear 4-link double adjustable suspension system. Designed for 1967-1969 Camaro and Firebird models, this system replaces the factory leaf springs with a triangulated 4-link configuration for improved traction, stability, ride quality, and suspension adjustability. A QA1 narrowed 9" rear housing accommodates mini-tubbed applications and wider wheel and tire combinations.

Features and Benefits:
- Fits 1967-1969 Camaro and Firebird models
- Replaces the factory leaf spring suspension with a triangulated 4-link system
- Includes QA1 narrowed 9" rear housing
- Narrowed configuration accommodates mini-tub and wider tire setups
- Double adjustable coil-over shocks provide independent compression and rebound tuning
- Adjustable trailing arms allow ride height, pinion angle, and wheelbase adjustment
- Includes 12" coil springs with a 170 lb./in spring rate
- Heavy duty 3" OD axle tubes feature 1/4" wall thickness
- 31-spline alloy axles rated for applications up to 650 HP
- Rear housing rated for applications up to 800 HP
- Fabricated center section provides additional strength
- Designed for high-performance street and track applications
- Mounting hardware included
- Powder coated finish enhances durability
- Made in the USA

Double adjustable coil-over shocks provide independent compression and rebound tuning, while adjustable trailing arms allow you to dial in ride height, pinion angle, and wheelbase. The rear housing combines 3" OD axle tubes with 1/4" walls, a fabricated center section, and 31-spline alloy axles for demanding performance applications. The system includes 12" 170 lb./in coil springs and mounting hardware for a comprehensive rear suspension upgrade.

Kit Includes:
- QA1 Triangulated 4-Link Suspension System
- QA1 Narrowed Ford 9" Rear Housing
- Double Adjustable Coil-Over Shocks
- 12” 170 lb./in Coil Springs
- Mounting Hardware

Vehicle Fitment:
- 1967-1969 Camaro
- 1967-1969 Firebird

Additional Notes:
- Third member (center section) is not included.
- Designed for use with mini tubs and custom wheel offsets.
- Welding is required for installation.
- Exhaust modifications may be necessary.
- QA1 subframe connectors are recommended.
- Verify fitment before ordering.
