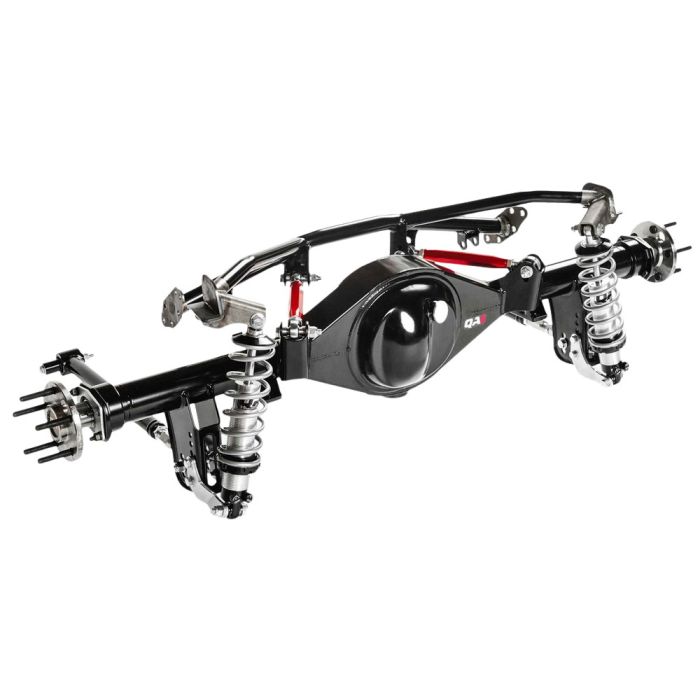

QA1 Rear 4-Link Suspension System Camaro 67-69/ Double Adjustable w/ OE-Width 9" Rear Housing

Transform the rear suspension of your classic F-Body with the QA1 rear 4-link double adjustable suspension system. Designed for 1967-1969 Camaro and Firebird models, this system replaces the factory leaf springs with a triangulated 4-link configuration for improved traction, stability, ride quality, and suspension adjustability. The included OE-width 9" rear housing maintains factory wheel mounting dimensions, making it ideal for vehicles retaining stock wheel tubs and standard wheel offsets.

Features and Benefits:
- Fits 1967-1969 Camaro and Firebird models
- Replaces the factory leaf spring suspension with a triangulated 4-link system
- Includes QA1 OE-width 9" rear housing
- Maintains approximately 60" factory wheel mounting width
- Ideal for stock wheel tubs and standard wheel offsets
- Double adjustable coilover shocks provide independent compression and rebound tuning
- Adjustable trailing arms allow ride height, pinion angle, and wheelbase adjustment
- Includes 12" coil springs with a 170 lb./in spring rate
- Heavy duty 3" OD axle tubes feature 1/4" wall thickness
- 31-spline alloy axles rated for applications up to 650 HP
- Rear housing rated for applications up to 800 HP
- Fabricated center section provides additional strength and durability
- Designed for high-performance street and track applications
- Mounting hardware included
- Powder coated finish provides corrosion resistance
- Made in the USA

Double adjustable coilover shocks provide independent compression and rebound tuning for precise control over ride and handling characteristics. Adjustable trailing arms allow ride height, pinion angle, and wheelbase adjustments, while the rear housing combines heavy duty 3" OD axle tubes with 1/4" walls, a fabricated center section, and 31-spline alloy axles. The system also includes 12" 170 lb./in coil springs and mounting hardware for a comprehensive rear suspension upgrade.

Kit Includes:
- QA1 Triangulated 4-Link Suspension System
- QA1 OE Width Ford 9" Rear Housing
- Double Adjustable Coil-Over Shocks
- 12” 170 lb./in Coil Springs
- Mounting Hardware

Vehicle Fitment:
- 1967-1969 Camaro
- 1967-1969 Firebird

Additional Notes:
- Third member (center section) is not included.
- Designed for use with stock wheel tubs and standard wheel offsets.
- Welding is required for installation.
- Exhaust modifications may be necessary.
- QA1 subframe connectors are recommended.
- Verify fitment before ordering.
